Product Summary
The AD5327ARUZ is quad 8-, 10-, and 12-bit buffered voltage output DAC in a 10-lead MSOP that operate from a single 2.5 V to 5.5 V supply, consuming 500 μA at 3 V. Its on-chip output amplifiers allow rail-to-rail output swing with a slew rate of 0.7 V/μs. A 2-wire serial interface, which operates at clock rates up to 400 kHz, is used. This interface is SMBus compatible at VDD < 3.6 V. Multiple devices can be placed on the same bus.
Parametrics
Absolute maximum ratings: (1)VDD to GND: –0.3 V to +7 V; (2)SCL, SDA to GND: –0.3 V to VDD + 0.3 V; (3)A0 to GND: –0.3 V to VDD + 0.3 V; (4)Reference Input Voltage to GND: –0.3 V to VDD + 0.3 V; (5)VOUT A–D to GND: –0.3 V to VDD + 0.3 V; (6)Operating Temperature Range Industrial (A, B Version): –40℃ to +105℃; (7)Storage Temperature Range: –65℃ to +150℃; (8)Junction Temperature (TJ max): 150℃.
Features
Features: Absolute maximum ratings: (1)Low Power Operation: 500 μA @ 3 V, 600 μA @ 5 V; (2)2-Wire (I2C Compatible) Serial Interface; (3)2.5 V to 5.5 V Power Supply; (4)Guaranteed Monotonic by Design over All Codes; (5)Power-Down to 80 nA @ 3 V, 200 nA @ 5 V; (6)Three Power-Down Modes; (7)Double-Buffered Input Logic; (8)Output Range: 0 V to VREF; (9)Power-On Reset to 0 V; (10)Simultaneous Update of Outputs (LDAC Function); (11)Software Clear Facility; (12)Data Readback Facility; (13)On-Chip Rail-to-Rail Output Buffer Amplifiers; (14)Temperature Range -40℃ to +105℃.

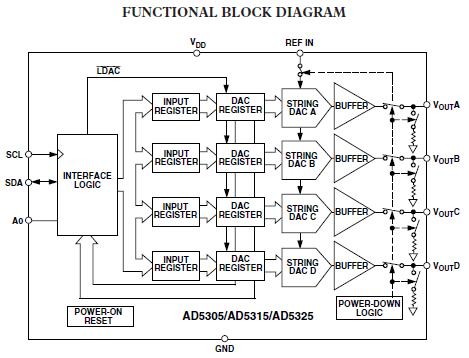

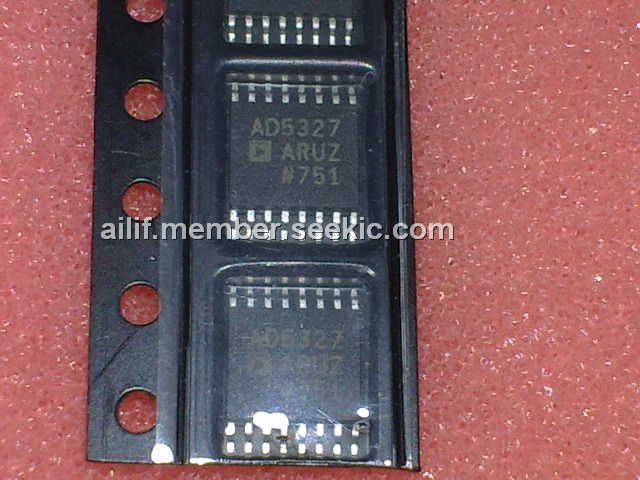

Diagrams
