The LTC1605ISW is a 100ksps, sampling 16-bit A/D converter that draws only 55mW (typical) from a single 5V supply. The device includes sample-and-hold, precision reference, switched capacitor successive approximation A/D and trimmed internal clock.
Parametrics
Absolute maximum ratings: (1)VANA:7V; (2)VDIG to VANA:0.3V; (3)VDIG:7V; (4)Ground Voltage Difference:DGND, AGND1 and AGND2:±0.3V; (5)Analog Inputs:VIN:±25V, CAP:VANA+0.3V to AGND2–0.3V, REF:Indefinite Short to AGND2 Momentary Short to VANA; (6)Digital Input Voltage:VSS–0.3V to 10V; (7)Digital Output Voltage:VDGND–0.3V to VDIG+0.3V; (8)Power Dissipation:500mW; (9)Operating Ambient Temperature Range:–40℃ to 85℃; (10)Storage Temperature Range:–65℃ to 150℃; (11)Lead Temperature (Soldering, 10 sec):300℃.
Features
Features: (1)Sample Rate: 100ksps; (2)Single 5V Supply; (3)Bipolar Input Range: ±10V; (4)Power Dissipation: 55mW Typ; (5)Integral Nonlinearity: ±2.0LSB Max; (6)Guaranteed No Missing Codes; (7)Signal-to-Noise Ratio: 86dB Typ; (8)Operates with Internal or External Reference; (9)Internal Synchronized Clock; (10)28-Pin 0.3” PDIP, SSOP and SW Packages; (11)Improved 2nd Source to ADS7805 and AD976.

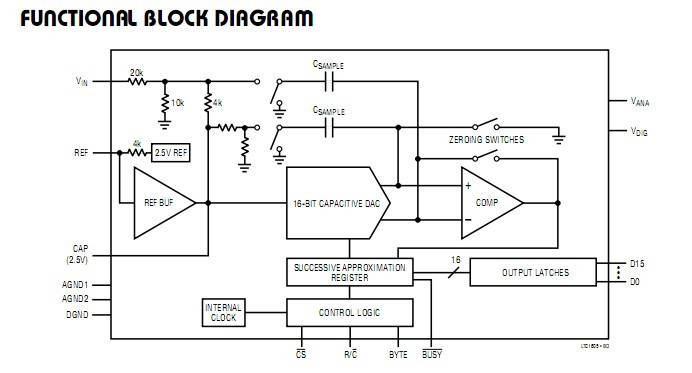

Diagrams
