Product Summary

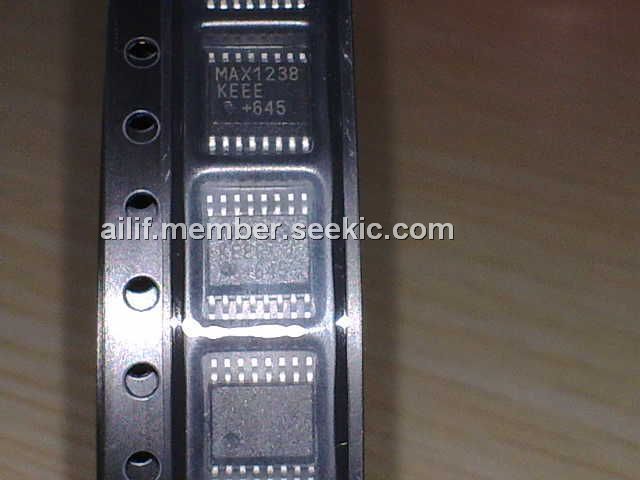

The MAX1238KEEE is a low-power, 12-bit, multichannel analog-to-digital converter(ADC). It has 12 analog input channels each.
Parametrics
Absolute maximum ratings: (1)VDD to GND:-0.3V to +6V; (2)AIN0–AIN11,REF to GND:-0.3V to the lower of (VDD + 0.3V) and 6V; (3)SDA, SCL to GND:-0.3V to +6V; (4)Maximum Current Into Any Pin:±50mA; (5)Continuous Power Dissipation (TA = +70℃):666.7mW; (6)Operating Temperature Range:-40℃ to +85℃; (7)Junction Temperature:+150℃; (8)Storage Temperature Range:-60℃ to +150℃; (9)Lead Temperature (soldering, 10s):+300℃.
Features
Features: (1)High-Speed I2C-Compatible Serial Interface:400kHz Fast Mode, 1.7MHz High-Speed Mode; (2)Single-Supply:4.5V to 5.5V; (3)Internal Reference:4.096V; (4)External Reference: 1V to VDD; (5)Internal Clock:12-Channel Single-Ended or 6-Channel Fully Differential; (6)Internal FIFO with Channel-Scan Mode; (7)Low Power; (8)Software-Configurable Unipolar/Bipolar; (9)Small Packages:16-Pin QSOP.

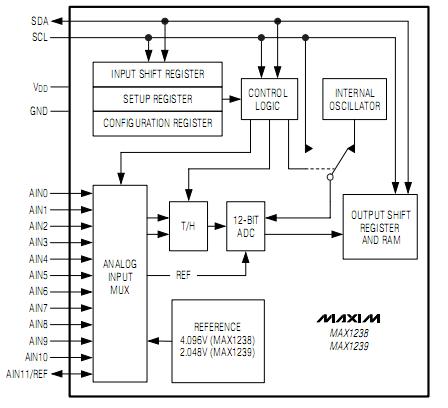

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 MAX1238KEEE+ |
Maxim Integrated Products |
ADC (A/D Converters) Integrated Circuits (ICs) |
Data Sheet |
Negotiable |
|
||||
 |
MAX1238KEEE-T |
Maxim Integrated Products |
ADC (A/D Converters) |
Data Sheet |
Negotiable |
|
||||
|
MAX1238KEEE+T |
Maxim Integrated Products |
ADC (A/D Converters) |
Data Sheet |
Negotiable |
|
||||
|
MAX1238KEEE |
Maxim Integrated Products |
ADC (A/D Converters) |
Data Sheet |
Negotiable |
|
||||
