Product Summary

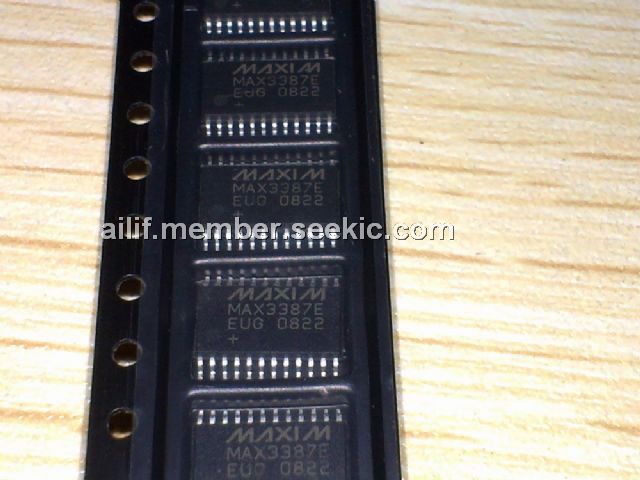

The MAX3387EEUGis is a communications interface with low power requirements, high data-rate capabilities, and enhanced electrostatic discharge (ESD) protection. It has three receivers and three transmitters. All RS-232 inputs and outputs are protected to ±15kV using the IEC 1000-4-2 Air-Gap Discharge method, ±8kV using the IEC 1000-4-2 Contact Discharge method, and ±15kV using the Human Body Model.
Parametrics
Absolute maximum ratings: (1)VCC to GND: -0.3V to +6V; (2)VL to GND: -0.3V to (VCC + 0.3V); (3)V+ to GND: -0.3V to +7V; (4)V- to GND: +0.3V to -7V; (5)Short-Circuit Duration T_OUT to ; (6)Junction Temperature: +150℃; (7)Storage Temperature Range: -65℃ to +150℃; (8)Lead Temperature (soldering, 10sec): +300℃.
Features
Features: (1)VL Pin for Compatibility with Mixed-Voltage Systems; (2)±15kV ESD Protection on Rx Inputs and Tx Outputs; (3)Low 300μA Supply Current; (4)Guaranteed 250kbps Data Rate; (5)1μA AutoShutdown Plus. with Receivers Active; (6)Meets EIA/TIA-232 Specifications Down to 3.0V.

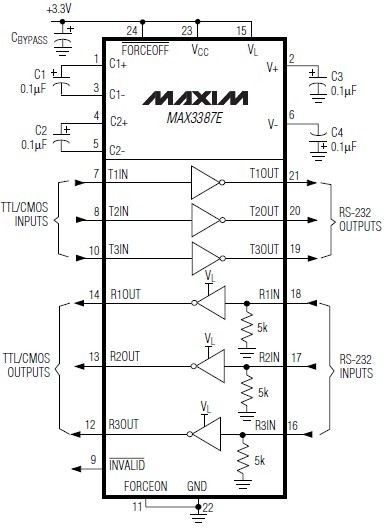

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MAX3387EEUG+ |
Maxim Integrated Products |
RS-232 Interface IC 3V Transceiver for PDAs & Cells |
Data Sheet |
|
|
||||||||||||
|
MAX3387EEUG+T |
Maxim Integrated Products |
RS-232 Interface IC 3V Transceiver for PDAs & Cells |
Data Sheet |
|
|
||||||||||||
 |
MAX3387EEUG-T |
Maxim Integrated Products |
RS-232 Interface IC |
Data Sheet |
Negotiable |
|
||||||||||||
|
MAX3387EEUG |
Maxim Integrated Products |
RS-232 Interface IC |
Data Sheet |
Negotiable |
|
||||||||||||
