Product Summary

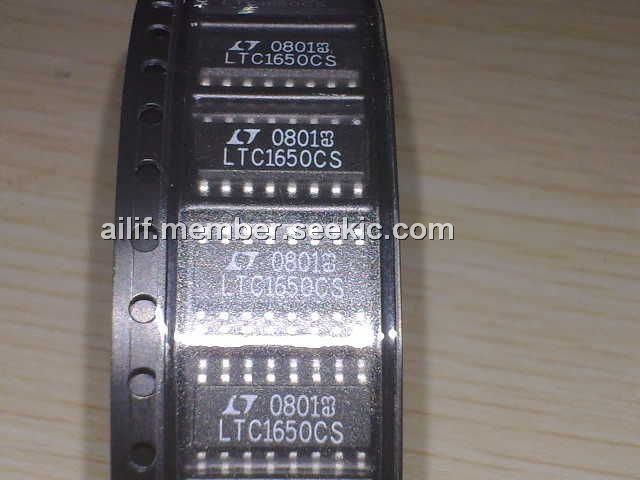

The LTC1650CS is a deglitched rail-to-rail voltage output 16-bit digital-to-analog converter (DAC) available in a 16-pin narrow SO package. It has 16-bit monotonicity over temperature and includes a rail-to-rail output buffer amplifier and an easy to use three-wire cascadable serial interface. It operates with dual ±5V supplies. With REFLO = 0V and REFHI = VREF, the output will swing from 0V to VREF in unipolar mode or ±VREF in bipolar mode.
Parametrics
Absolute maximum ratings: (1)AVDD, DVDD to DGND: – 0.5V to 7.5V; (2)TTL Input Voltage: – 0.5V to 7.5V; (3)VOUT, VRST: – 0.5V to (AVDD + 0.5V); (4)AVSS: 0.5V to –7.5V; (5)Operating Temperature Range: 0℃ to 70℃; (6)Maximum Junction Temperature: 125℃; (7)Storage Temperature Range: –65℃ to 150℃; (8)Lead Temperature (Soldering, 10 sec): 300℃.
Features
Features: (1)16-Bit Monotonic Over Temperature; (2)Low Glitch Impulse: 2nV-s; (3)Low Noise; (4)Buffered Rail-to-Rail Voltage Output; (5)Low Power; (6)Unipolar or Bipolar Output; (7)4-Quadrant Multiplying Capability; (8)Asynchronous Clear to User-Defined Voltage; (9)Power-On Reset; (10)Three-Wire SPI and MICROWIRETM Compatible Serial Interface; (11)Schmitt Trigger On CLK Input Allows Direct Optocoupler Interface; (12)16-Pin Narrow SO Package.
Diagrams
