Product Summary

The MM5451yv LED display driver is monolithic MOS IC’s fabricated in an N-Channel, metalgate process.

Parametrics

Absolute maximum ratings: (1)Voltage (any pin):VSS to VSS + 12V ; (2)Power Dissipation :+25℃:1W , +85℃:560mW ; (3)Junction Temperature:+150℃; (4)Storage Temperature:–65℃ to +150℃; (5)Lead Temperature (soldering, 10sec.):+300℃; (6)Supply voltage (VDD – VSS):+4.75V to +11V ; (7)Ambient Temperature Range:–40℃ to +85℃.

Features

Features: (1)Continuous brightness control ; (2)Serial data input ; (3)No load signal requirement ; (4)Wide power supply operation ; (5)TTL compatibility ; (6)34 or 35 outputs, 15mA capability ; (7)Alphanumeric capability.

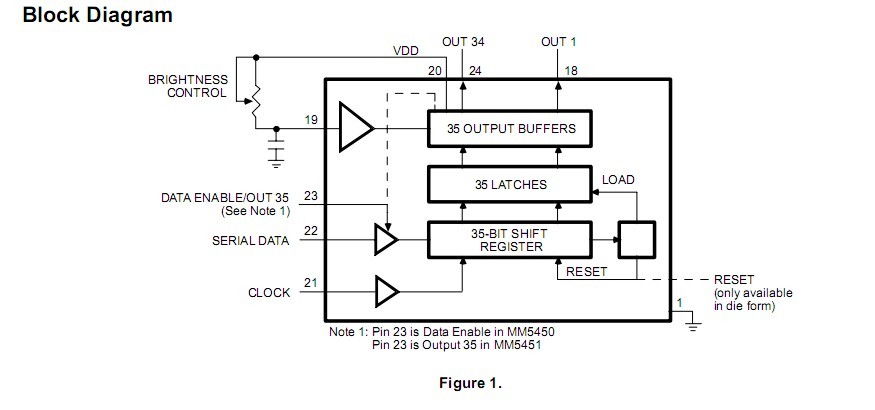

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

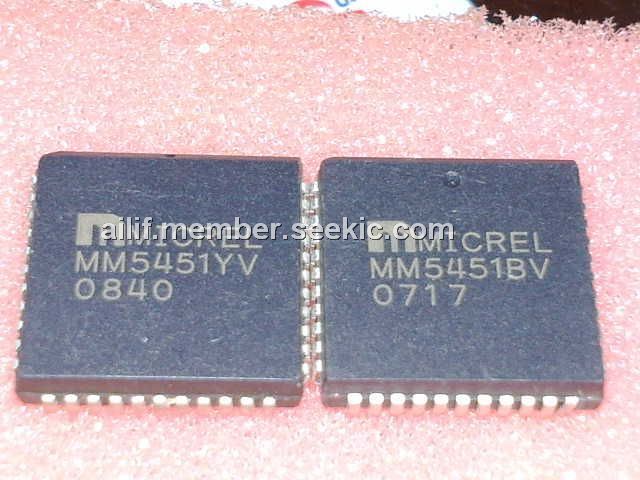

MM5451YV
MM5451YV

IC LED DISPLAY DRIVER 44-PLCC
Data Sheet
0-1: $2.27
1-25: $1.81
25-100: $1.41
100-250: $1.34
250-500: $1.31
MM5451YV TR
MM5451YV TR

IC DRIVER DISPLAY LED 44PLCC
Data Sheet
0-1: $2.27
1-25: $1.81
25-100: $1.41
100-250: $1.34
